Write a function that add two numbers A and B

Of course you can just return a + b to get accepted. But Can you challenge not do it like that?(You should not use + or any arithmetic operators.)

I encountered such a problem when I did the algorithm question today.

click me to vist

Although it’s not too difficult, this question is quite interesting.

Problem

Description

Write a function that add two numbers A and B.

Are a and b both 32-bit integers?

  • Yes.

Can I use bit operation?

  • Sure you can.

Sample

1
2
3
4
5
6
7
8
9
10
11
12
13
Example 1:
Input: a = 1, b = 2
Output: 3
Explanation:
return the result of a + b.
Example 2:
Input: a = -1, b = 1
Output: 0
Explanation:
return the result of a + b.

challenge

Of course you can just return a + b to get accepted. But Can you challenge not do it like that?(You should not use + or any arithmetic operators.)

Answer

If we can’t use + or any arithmetic operators, we can only use bit operation.

So, we need to understand how the half adder works.

Half adder

The half adder adds two single binary digits A and B. It has two outputs, sum (S) and carry (C). The carry signal represents an overflow into the next digit of a multi-digit addition. The value of the sum is 2C + S. The simplest half-adder design, pictured on the right, incorporates an XOR gate for S and an AND gate for C.

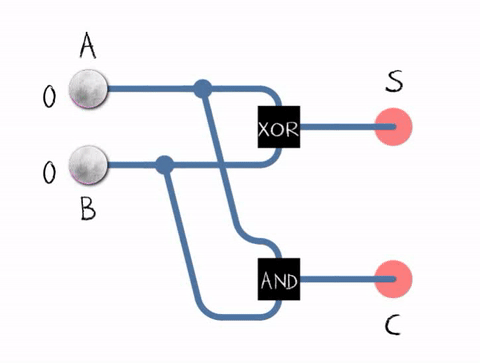

Here is the Half adder in action:

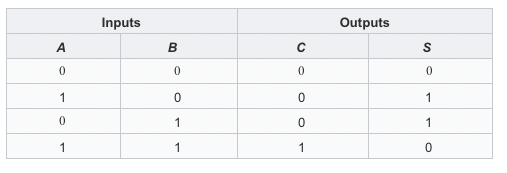

The Boolean logic for the sum (in this case S) will be A′B + AB′ whereas for the carry (C) will be AB. With the addition of an OR gate to combine their carry outputs, two half adders can be combined to make a full adder.[1] The half adder adds two input bits and generates a carry and sum, which are the two outputs of a half adder. The input variables of a half adder are called the augend and addend bits. The output variables are the sum and carry. The truth table for the half adder is:


Conversion

Before beginning, let’s divide the decimal A=9 and B=7 into binary A=1001, B=0111.

  1. First calculate the number of digits (not carry):

    1001 + 0111 = 1110
    The result is the same as A^B (A XOR B).

  2. Then get the carry.

    If 1001 + 0111 do the carry, the carry will occur only when 1 + 1 is there.So, how do we get the carry signal? 1 + 0, 0 + 0, 0 + 1 will not have a carry signal, it satisfies the truth table of phase and &. We can also see directly from the inside of the half adder , S = A ^ B, C = A & B.

  3. Plus the carry.

    We find that the carry signal appears at 1 + 1 (1&1 = 1), and the previous bit needs to be entered. That is, C can be further expressed as C = (A & B) << 1.

  4. repeat and repeat.

    Since if the previous bit 0+1 plus the carry symbol 1, it will also be carried. It is necessary to repeat the above process continuously.

Code

Here I will use the Swift.

1
2
3
4
5
6
7
8
9
10
11
func aPlusB(_ a: Int,_ b: Int) -> Int {
if (a == 0) {
return b
} else if (b == 0) {
return a
} else {
let x: Int = a ^ b
let y: Int = (a & b) << 1
return aPlusB(x, y)
}
}
